How Does a Car Steering System Work?

A car steering system is responsible for giving directional change to the movement of your vehicle and maintaining the driving direction according to your decision.

The steering system enables you to guide the vehicle on the road and turn left or right as desired. With the movement of steering wheel, the car wheels also change their position from straight to the direction specified. In addition, the steering system also reduces your effort to steer the vehicle.

Steering system is a set of components that enables a vehicle to follow a desired course. The main purpose of a well-maintained steering system is to help you to guide your vehicle. As you turn the steering wheel, the rotating movement of the car wheels will take place. This way, it will enable you to steer your car safely and accurately.



Although steering a car may appear quite an easy task to you, however, working on a car steering system is much more complicated. Let us see how a steering system in a car works.

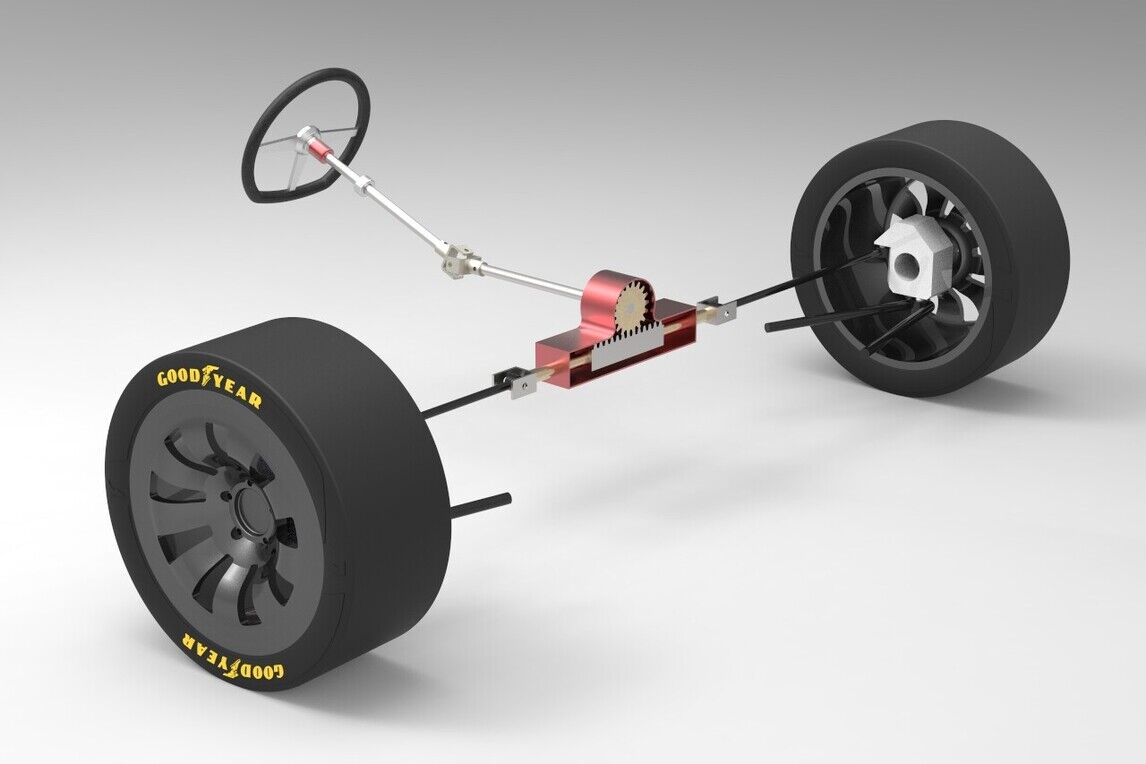

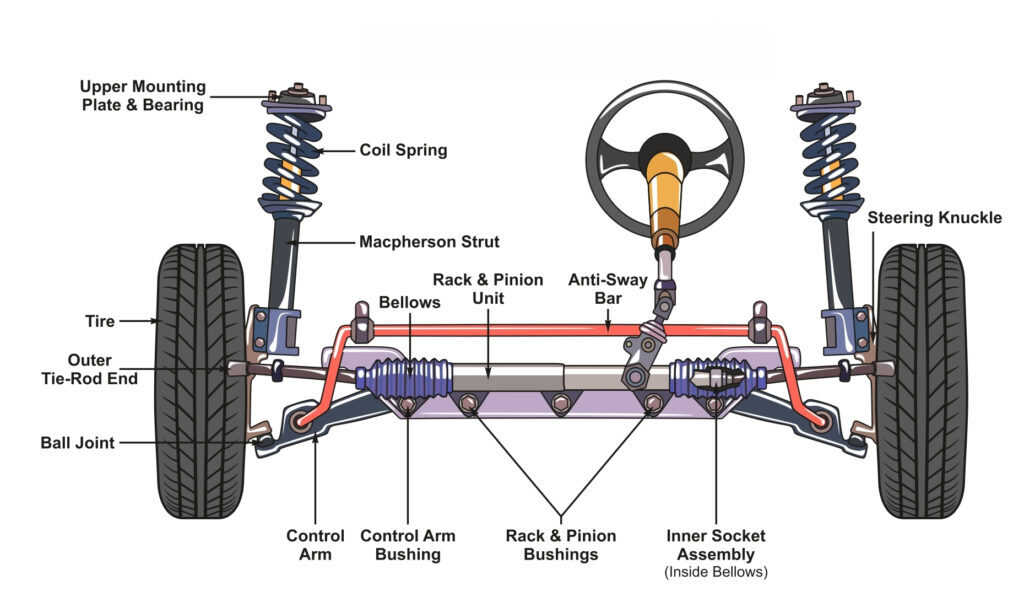

Rack and pinions are the two most important components in your steering system. The steering wheel is connected to a coupling that transmits the force underneath to another shaft.

The second shaft is connected to a small gear wheel, also known as pinion gear that interlocks gear teeth on a zone called a rack. A rack is a bar corresponding to the front axle that shifts right or left when you turn your car’s steering wheel. This rack is fixed at right angles to your car’s width.

As you turn the steering wheel, its rotation will exert pressure on the rack. With the rack’s movements, your car’s front tyres will turn since the attached rods and steering knuckles act as pivot points.

Following are some important functions of a car steering system:



1. Sets Your Car’s Direction

It enables you to adjust your car’s direction by rotating its wheels either left or right according to the turn in the steering wheel. Your car will follow the same direction as per your steering rotation.

When you turn your car’s steering wheel to right, its wheel will also move to the right and vice versa. Similarly, if you turn the steering wheel to the left, the front wheels will turn left. In this way, you will be able to control your car’s direction and movement.



2. Gives Stability To Your Car

Secondly, the function of your car’s steering system is to offer stability and control of your car while you are traveling.

While your vehicle is running, turn its steering wheel to the right if you want to turn right. The steering system makes its left wheel to guide your car to go right-side. Similarly, when our car is going straight, the forward wheels both (right and left) need to go in the straight direction.

In this way, your vehicle will go in all directions with stability in its movement and conditions. As a result, an efficient steering system is essential for your car. However, if your car steering system is not in the proper way, it will make your vehicle unstable.



3. Avoids Vibrations of Steering Wheel

Thirdly, another function of an efficient steering system is preventing your car’s steering wheel from unnecessary jerking and vibrations from the road. The design of a steering system is such that it can provide suspension for keeping road vibrations away from your steering wheel. This is because it is equipped with a collapsible steering joint that lessens vibrations in your car’s steering linkage.



4. Reduce Tire Wear

Another important function of a car steering system is to decrease tire wear and tear. The steering system forms steering angles in combination with your car’s suspension system. For example, caster angle, kingpin inclination, camber angle, toe-in and toe-out, etc.

In general, effective steering angles align the two front wheels in the right position so that it can reduce tire wear in addition to offering you a smooth and comfortable driving experience.



5. Keeps Your Car’s Front Wheels Straight

Lastly, another vital function of the steering system is to enable your car’s wheels to realign themselves soon after they make a turn. When you are turning your car to the right or left, the steering system straightens the forward wheels after you complete the turn.

Now, you have a clear idea about the car steering system. It is obvious that the steering wheel system is a vital controlling component of your car. This is because it turns your rotational indications into the car's front wheels.

Hence, retaining the steering wheel system's efficiency is quintessential for ensuring a seamless driving experience. Therefore, if you find any sort of malfunction in the system, immediately contact experts for professional assistance.
