What is Trellis Frame in a Motorcycle: Construction, Design and Advantages

When it comes to motorcycle design, the trellis frame stands out as an innovative and popular choice. Motorcycle enthusiasts often debate the merits of various frame designs, but the trellis frame has gained widespread recognition for its unique characteristics.

To use your motorcycle wisely, you must know the trellis frame, its construction and design, and what benefits and disadvantages you will gain.

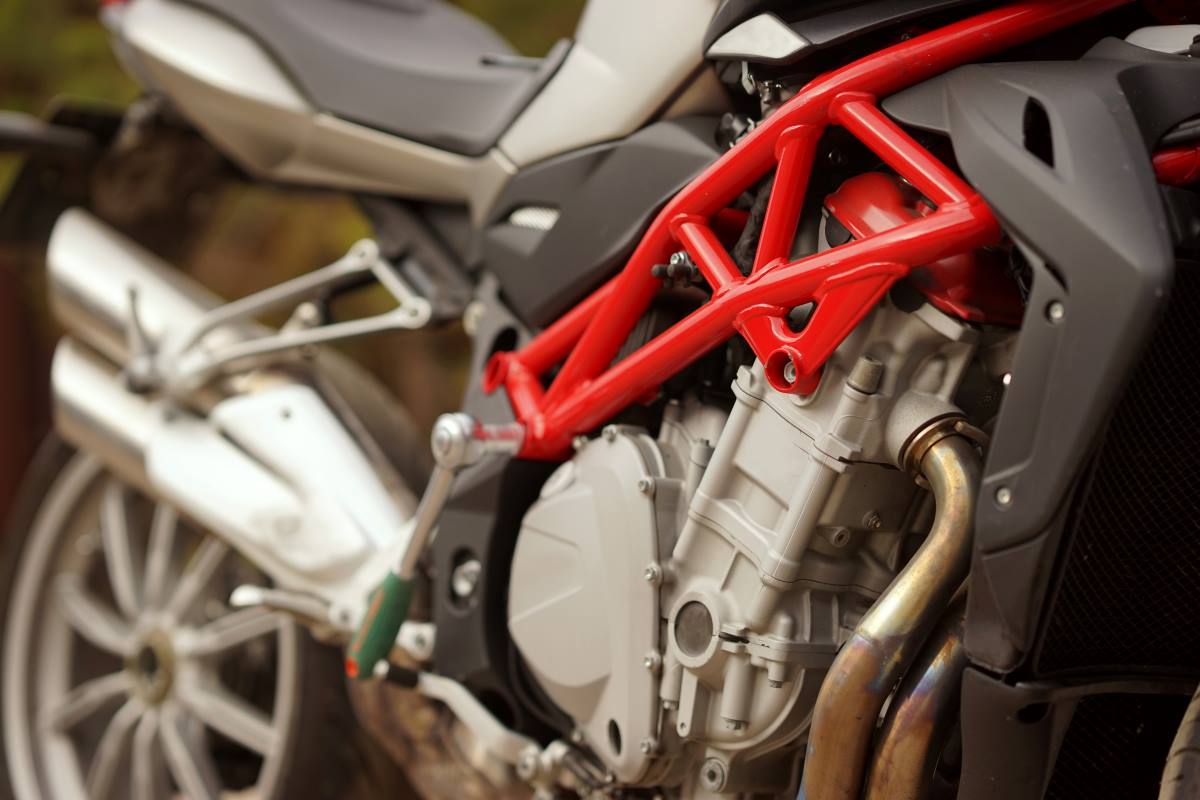

A trellis frame is a type of motorcycle frame characterised by an intricate network of tubes arranged in a lattice-like pattern. This design provides the necessary structural integrity while keeping the overall weight of the motorcycle in check.

The trellis frame has gained popularity for several reasons. It offers a unique combination of strength and lightness, contributing to improved handling and performance. Many argue that the trellis frame is a superior choice, especially in certain riding conditions.

The primary purpose of a trellis frame is to provide a robust structure that supports the motorcycle's engine and components. Trellis frames are commonly constructed using lightweight materials such as aluminium or steel alloy. The choice of material is critical, balancing strength and weight to ensure optimal performance.

It establishes a direct connection between the steering head and the swing-arm pivot, employing a triangular construction of multiple metal tubes. Manufacturers commonly create this frame type by welding together small, round, or oval-shaped metal tubular pieces, forming a lattice-like structure.

The motorcycle trellis frame design incorporates the engine beneath it, where the engine serves as a stressed member, enduring stress alongside the other tubes in the frame. This integration makes the engine an integral part of the frame, enhancing overall rigidity.

A skillfully designed frame ensures a robust yet lightweight structure, facilitating convenient engine and component placement. This arrangement simplifies servicing and maintenance and allows for improved accessibility.

The trellis frame comes with a host of advantages that impact a motorcycle's performance and maintenance, the benefits are:

• Lightweight: One of the primary advantages of a trellis frame is its lightweight construction. This results in an agile, responsive motorcycle that is easier to handle, especially in challenging riding conditions.
• Strength: Despite its lightweight nature, the trellis frame doesn't compromise on strength. The lattice-like structure ensures a robust frame that can withstand the rigours of various riding scenarios, contributing to overall safety.
• Easy Manufacturing: Trellis frames are more straightforward to manufacture than alternative frame designs. This simplicity in manufacturing can lead to increased efficiency in production processes.
• Easy Maintenance: Maintenance is a crucial aspect, and the trellis frame facilitates more accessible access to various components. This accessibility simplifies maintenance tasks, making it convenient for riders and mechanics.
• Controlling and Rigidity: The trellis frame's design allows precise control, enhancing the motorcycle's manoeuvrability. The lattice structure adds rigidity to the frame, contributing to stability and improved handling.
• Performance: The lightweight and rigid nature of the trellis frame directly impacts the motorcycle's overall performance. Acceleration, cornering, and responsiveness are often enhanced, providing a thrilling riding experience.
• Vibration Damping: The inherent flexibility of the trellis frame design helps dampen vibrations from the engine and the road. This results in a smoother and more comfortable ride for the motorcycle's rider and passenger.

While the trellis frame comes with various benefits, it's essential to acknowledge its drawbacks, such as:

• Cost: The construction and materials used in trellis frames can increase manufacturing costs. This cost may be reflected in the overall price of the motorcycle, making it less accessible to budget-conscious riders.
• Engine Reinforcement: Specific engine configurations may require additional reinforcement to be compatible with a trellis frame. This can add complexity to the design and manufacturing process, potentially increasing costs and weight.
• Less Space for Other Accessories: A trellis frame's design constraints may limit the space for additional accessories or modifications. Riders who enjoy customising their motorcycles might find the trellis frame less accommodating.
• Less Aerodynamics: Trellis frames may offer less aerodynamic efficiency than some fully enclosed frame designs. This can impact top speed and fuel efficiency, especially in high-speed scenarios.

The motorcycle trellis frame is a testament to innovative engineering in the world of two-wheelers. Its unique design, construction, and the advantages it brings have made it a popular choice among riders seeking a blend of performance and aesthetics. Ultimately, embracing a trellis frame depends on the rider's preferences.
